Postby grumpyvette » February 24th, 2009, 10:54 am

naturally youll need to get one designed to fit your particular engine or fabricate a custom one, white cardboard postor board can be used to make a pattern

CRANKSHAFT SCRAPER INSTALLATION
Crankshaft scraper must be test fit by bolting it onto pan rail of Block. Crank weights, rods, and rod bolts must have a minimum clearance of .060'' from the scraper. The scraper must be trimmed if the clearance is less than .060''. Using a gasket forming type sealant, ( 3M weatherstrip adhesive, silicone, etc.)glue and secure scraper with bolts to the pan rail of the ENGINE BLOCK and allow to dry completely . When sealant/glue is dry remove bolts and install oil pan and gaskets as they would normally be installed.

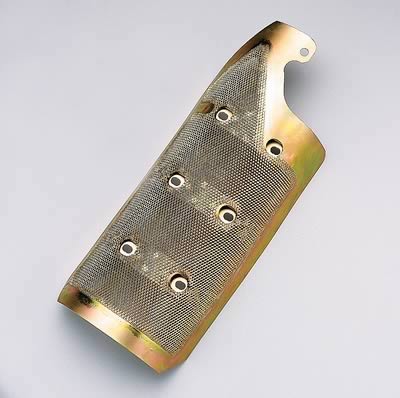

crank scrappers are best used combined with a WINDAGE SCREEN

and a high capacity baffled oil pan


http://victorylibrary.com/mopar/baffle.htm

the idea is to prevent oil from being swept around with the crank, a crank scrapper tends to strip oil dragged with the rotating crank,off and force it back intto the oil pan sump

http://www.spottsperformance.com/crankscraper
IF YOU CAN,T SMOKE THE TIRES AT WILL,FROM A 60 MPH ROLLING START YOUR ENGINE NEEDS MORE WORK!!"!
IF YOU CAN , YOU NEED BETTER TIRES AND YOUR SUSPENSION NEEDS MORE WORK!!
